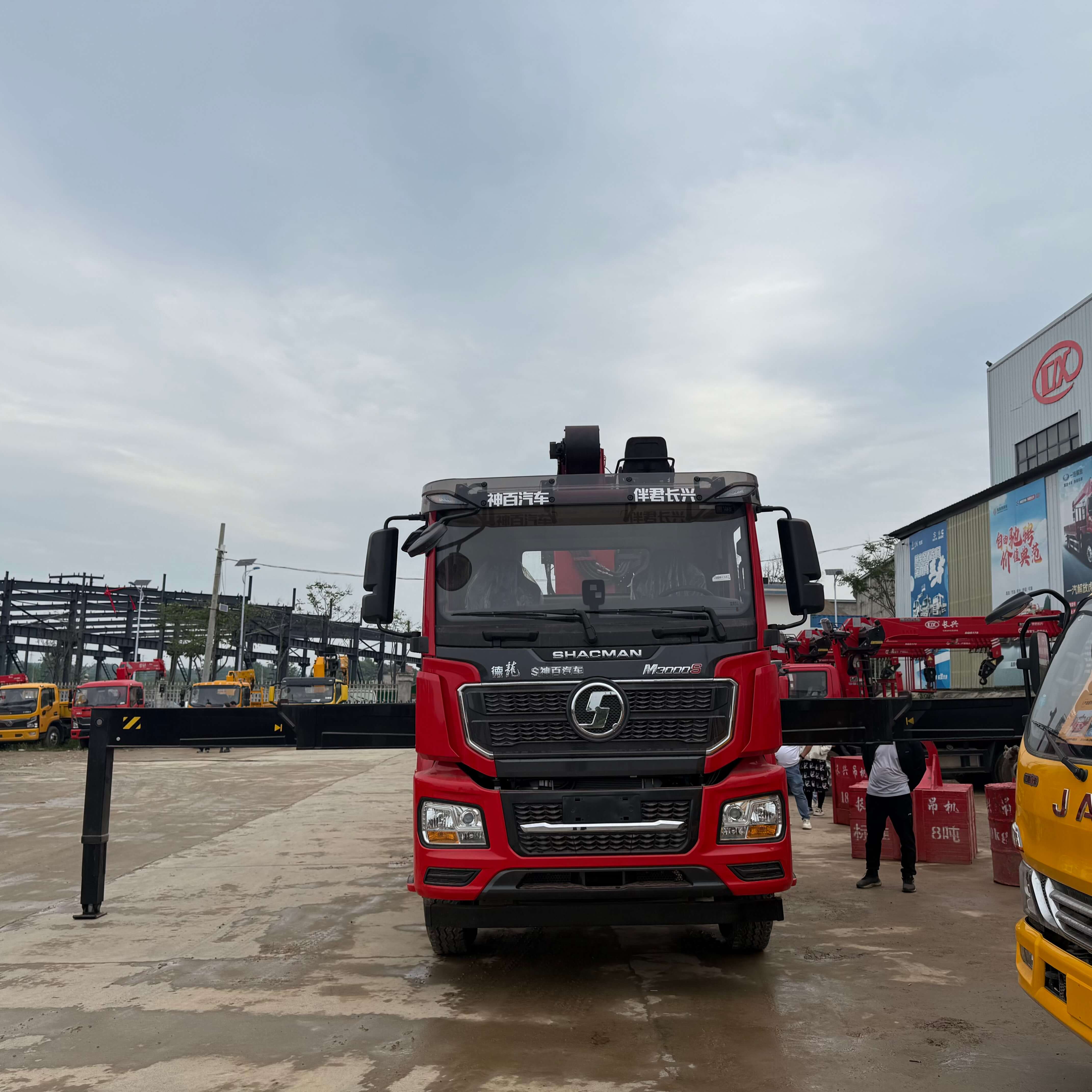

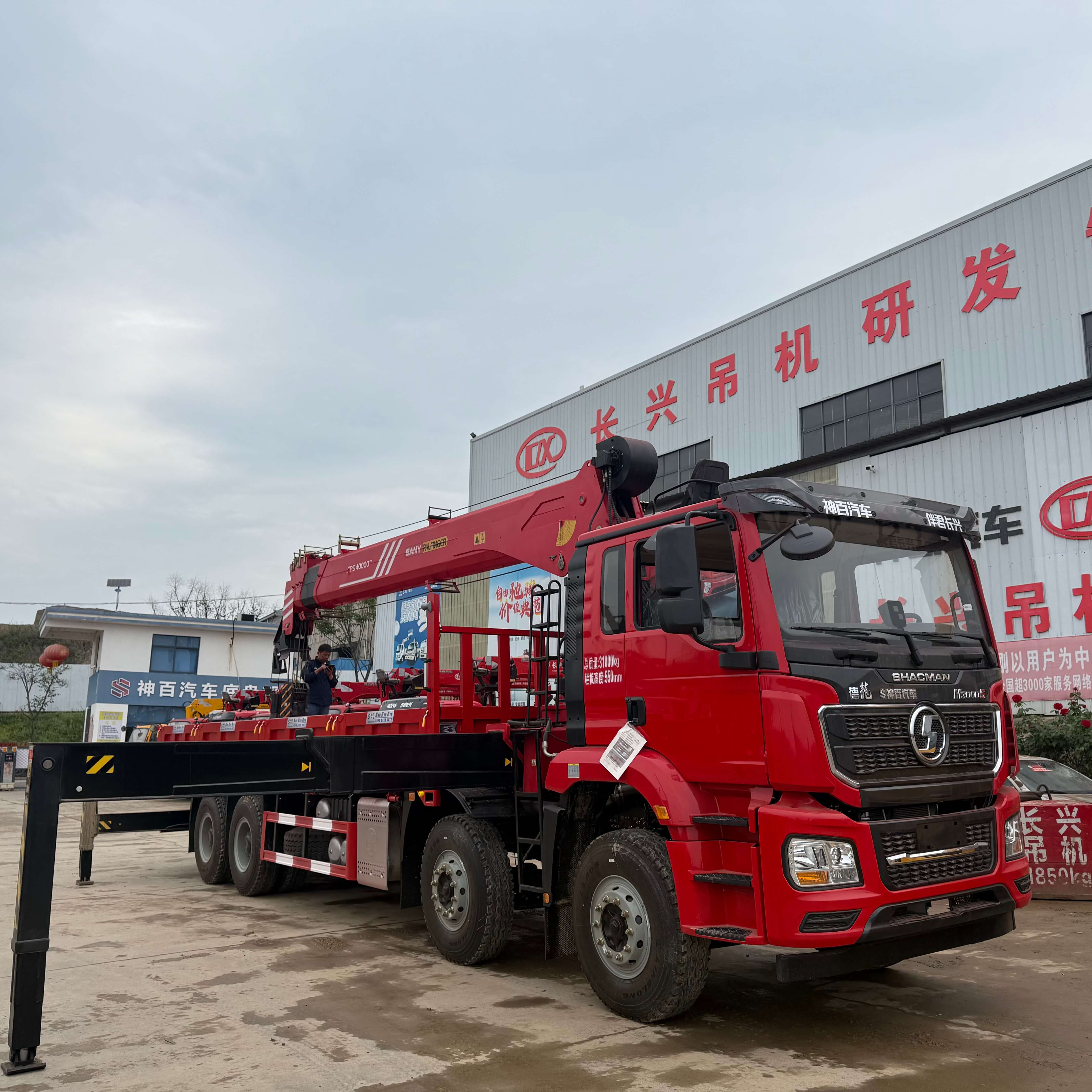

1. Vehicle Chassis (Truck Body)

• Model: SHACMAN Delong M3000S

• Drive Type: 8x4 (Four-axle, twin-steering and double-drive)

• Engine: Weichai High-Torque Diesel Engine (approx. 350hp - 400hp)

• Transmission: FAST Manual Gearbox (10 or 12 Speeds)

• Wheelbase: Optimized for heavy-duty crane stability

• Tires: 12.00R20 Radial Steel Tires

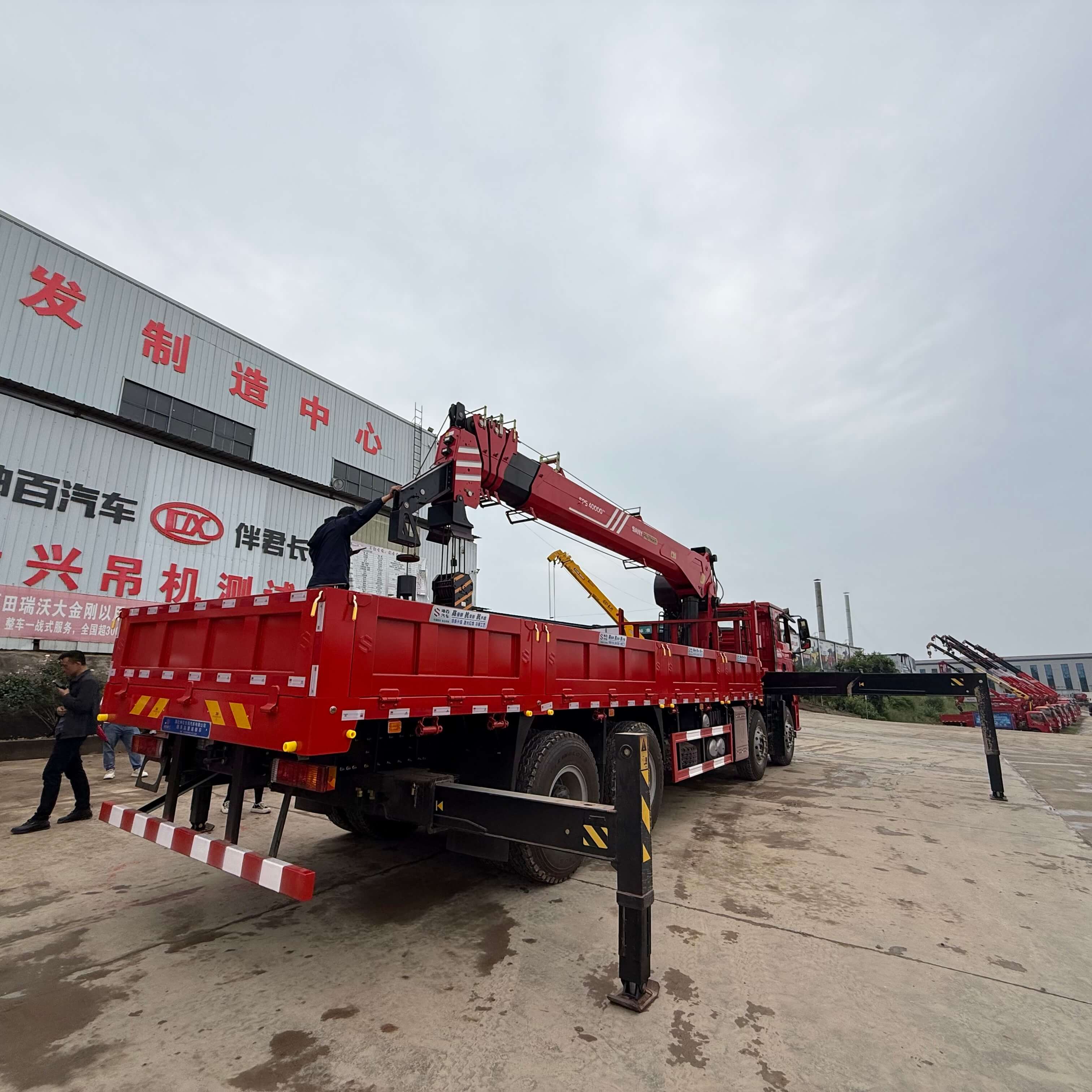

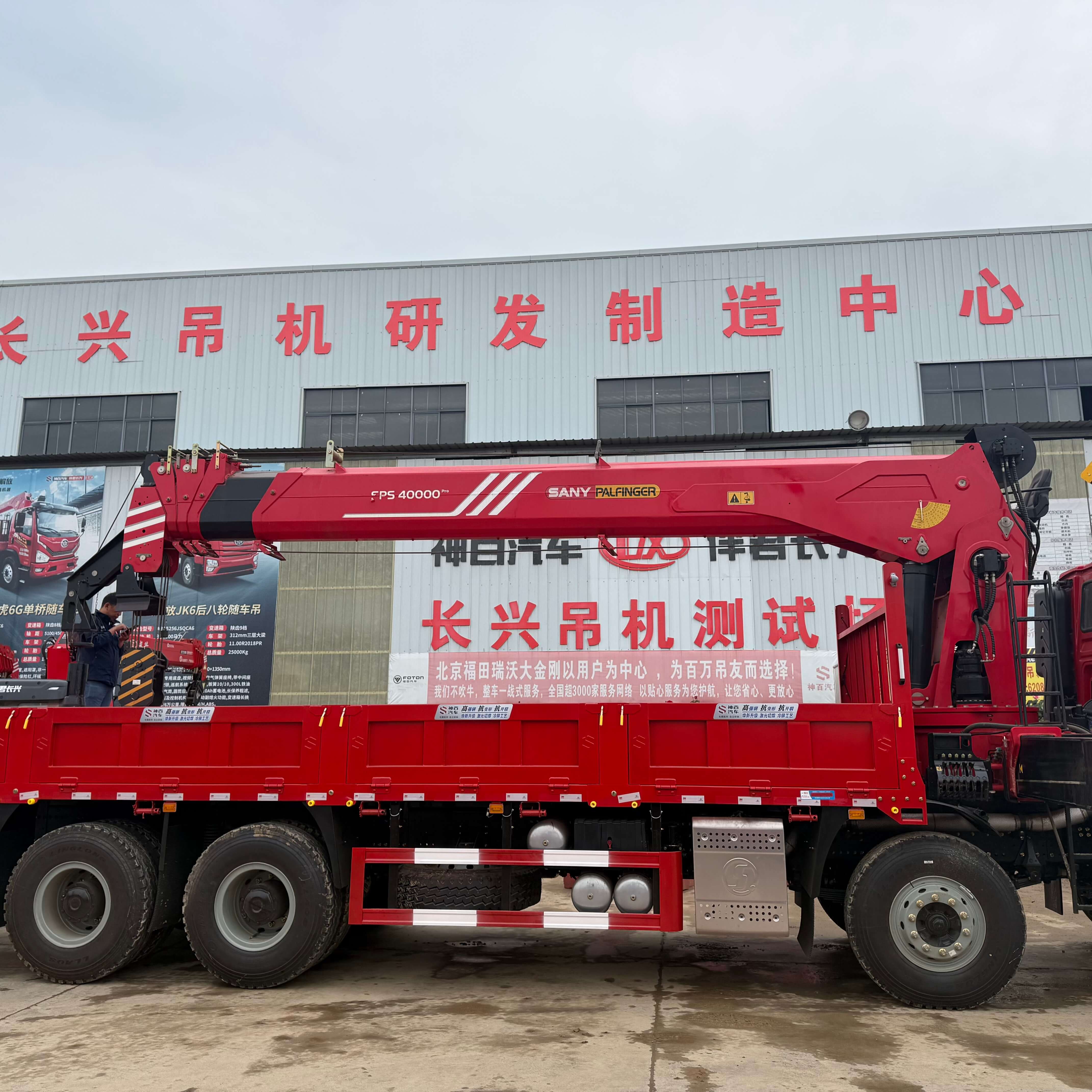

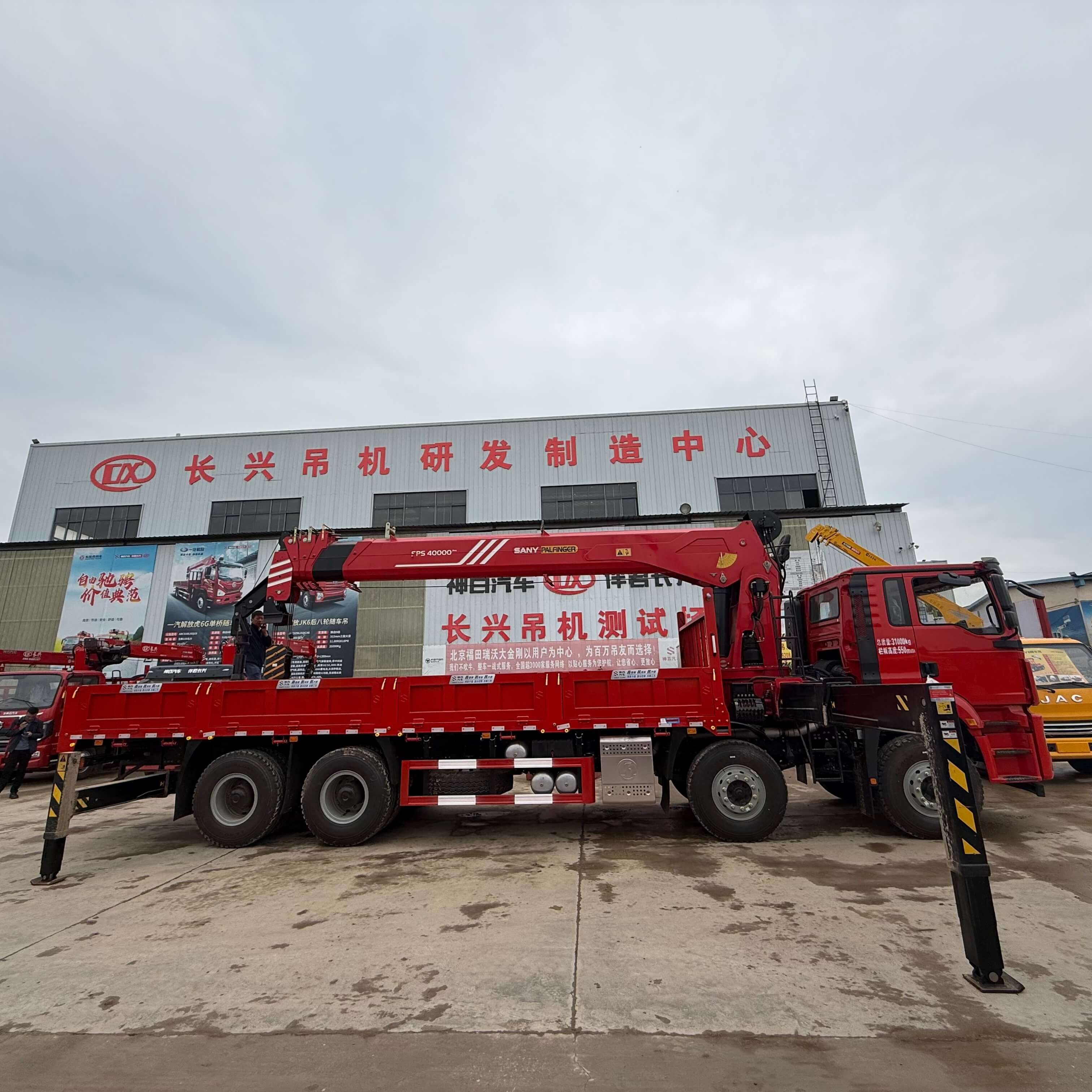

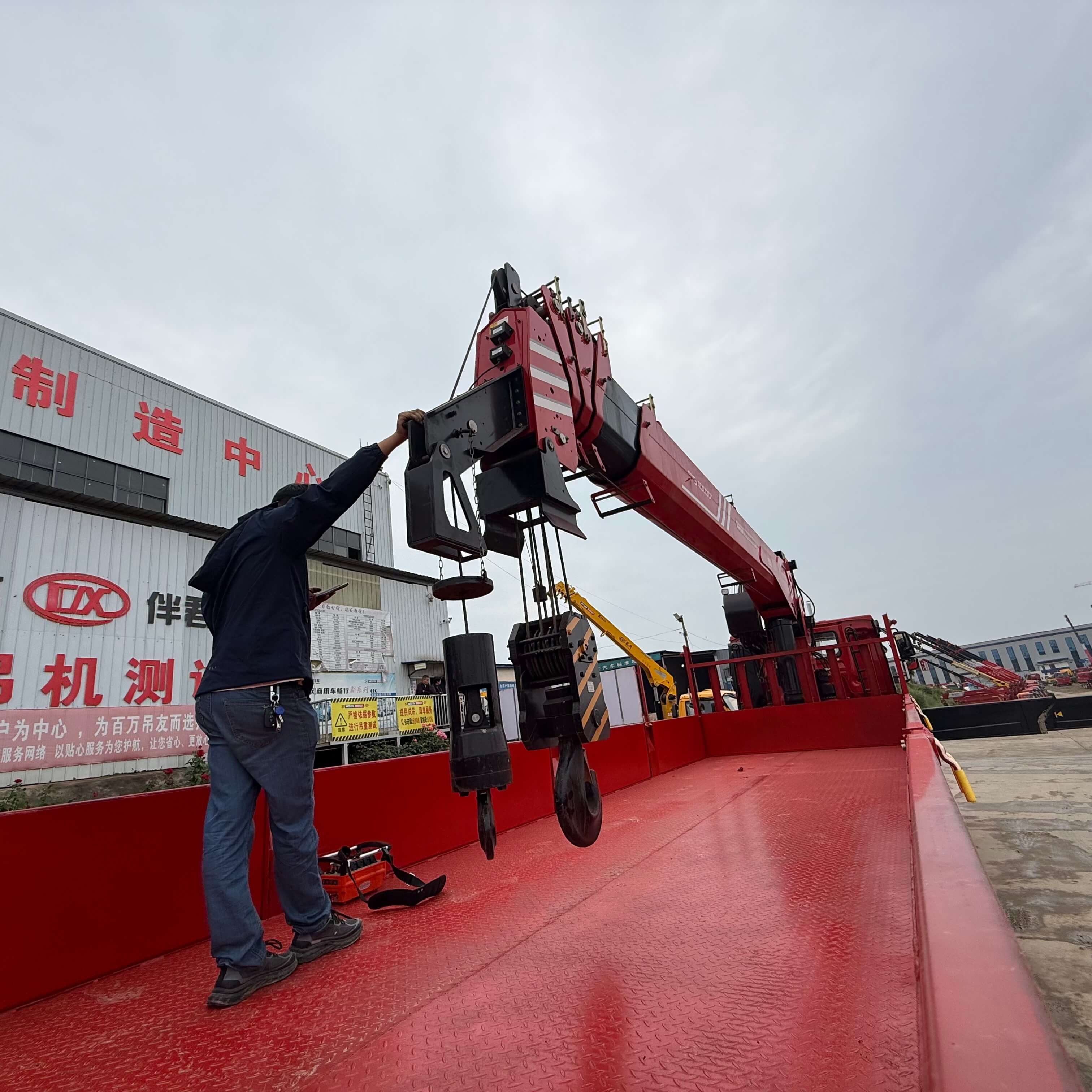

2. Crane Unit (Sany Palfinger)

• Crane Brand: Sany Palfinger (Joint Venture)

• Lifting Capacity: 16 Tons (Max. 16,000 kg)

• Max. Lifting Moment: 40.0 mt (Metric Tons per Meter)

• Boom Type: 5-Section Hexagonal/Octagonal Telescopic Boom

• Max. Working Radius: Approx. 18.5m - 19m

• Max. Lifting Height: Approx. 21m - 22m

• Rotation: 360° Continuous Slewing (Full Rotation)

3. Key Features & Control

• Remote Control System: Original Factory Wireless Remote Control (Enables high-precision operation from a safe distance)

• Outriggers (Stabilizers): Front and rear hydraulic outriggers with extended span for maximum stability.

• Hydraulic System: High-pressure piston pump system for smooth, simultaneous movements.

• Safety Features: Overload protection system, emergency stop, and hydraulic lock valves.

4. Cargo Box (Bodywork)

• Dimensions: Approx. 8,200mm - 8,500mm length

• Construction: High-strength cold-rolled steel with reinforced sideboards and floor.
